| Ligarex®-Universal-System, the custom size clamping strip | |
 |
Ligarex® - Mirex® of Switzerland |
 |
 |
 |
| Ligarex® | Mirex® | Ideal |
| The Ligarex®-Universal-System offers an universal solution and does not need keeping a large stock of different clamps. The special prepared strip is available in 25 m rolls with the following executions: | ||
 |
 |
 |
| Galvanized (inclusive edges), in size 5mm, 7.5mm and 10mm | Stainless steel 18/9 according to DIN 4301, in size 5 mm and 10 mm | Ligarex® buckles, galvanized or stainless steel 18/9 |
| The strip can be cut to fit any diameter and tied with buckles or Mirex® pin closures. | ||
| Possibilities of use: The Ligarex®-Universal-System is used in the following areas: sanitary, heating systems, air conditionning, car repair, cable binding, electrical appliances, electrical installations, workshop, and everytime you need to fasten hoses or tubes. Technical details: Tested for vibrations and pressures up to 1125 P.S.I. + EMPA approved. Specials: We deliver also large stainless steel strip according to AISI 304 in dispenser for strong coupling, with dimensions of 12,7 x 0,75 mm, 16,0 mm x 0,75 mm and 19,0 mm x 0,75 mm, together with corresponding closures and tool. Packing contents: Strips 5 mm = 10 rolls with a capacity of approx. 25 m, strips 8 mm and 10 mm = 5 rolls with a capacity of approx. 25 m, pliers 1 piece, buckles 5 mm, 8 mm and 10 mm = 1 bag to 100 pieces, Mirex®-closures 5 mm and 10 mm = 1 bag to 100 pieces. |
||
|
They keep tight. |
    |
|
Reliable tightness, highest loading. |
|

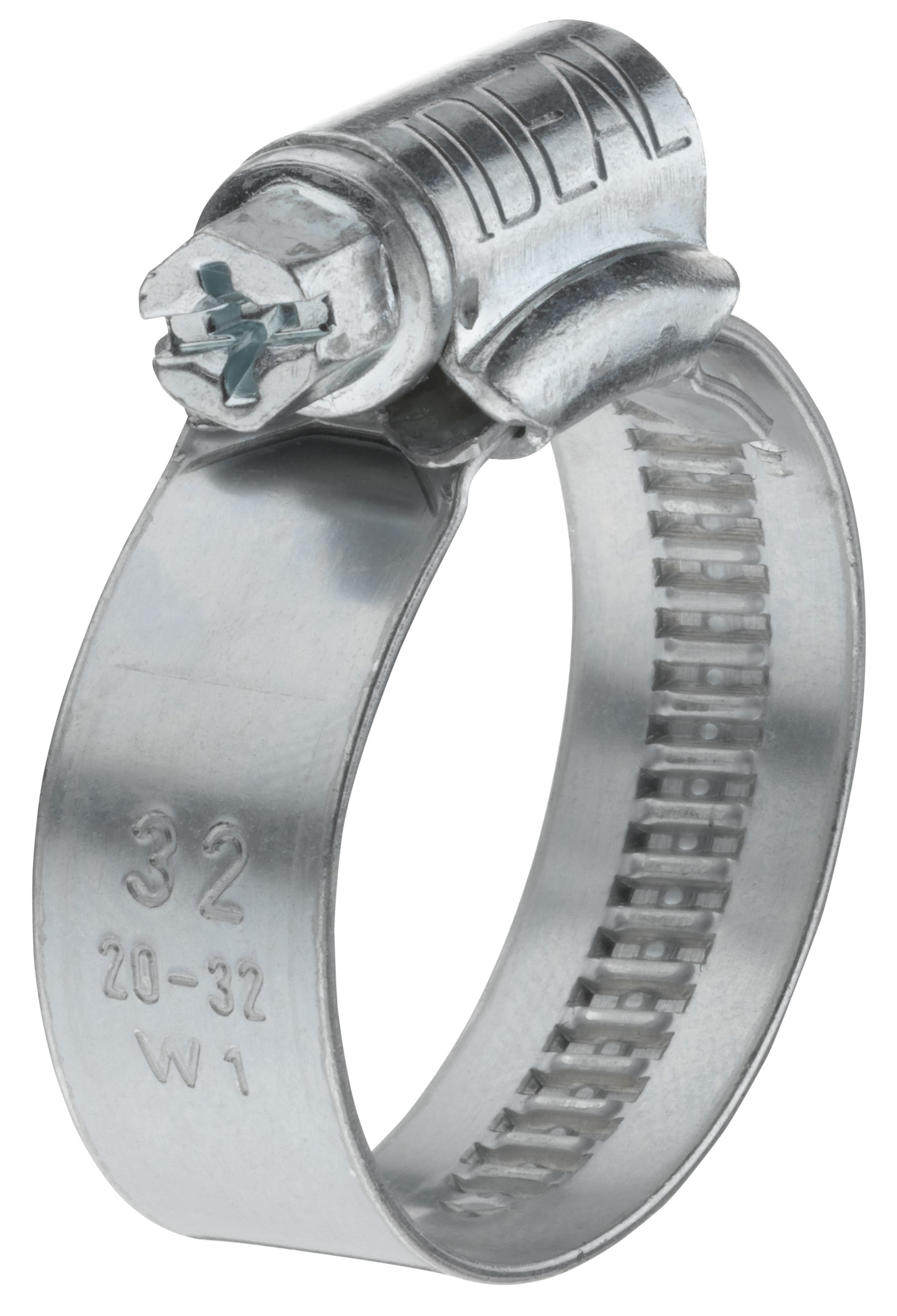

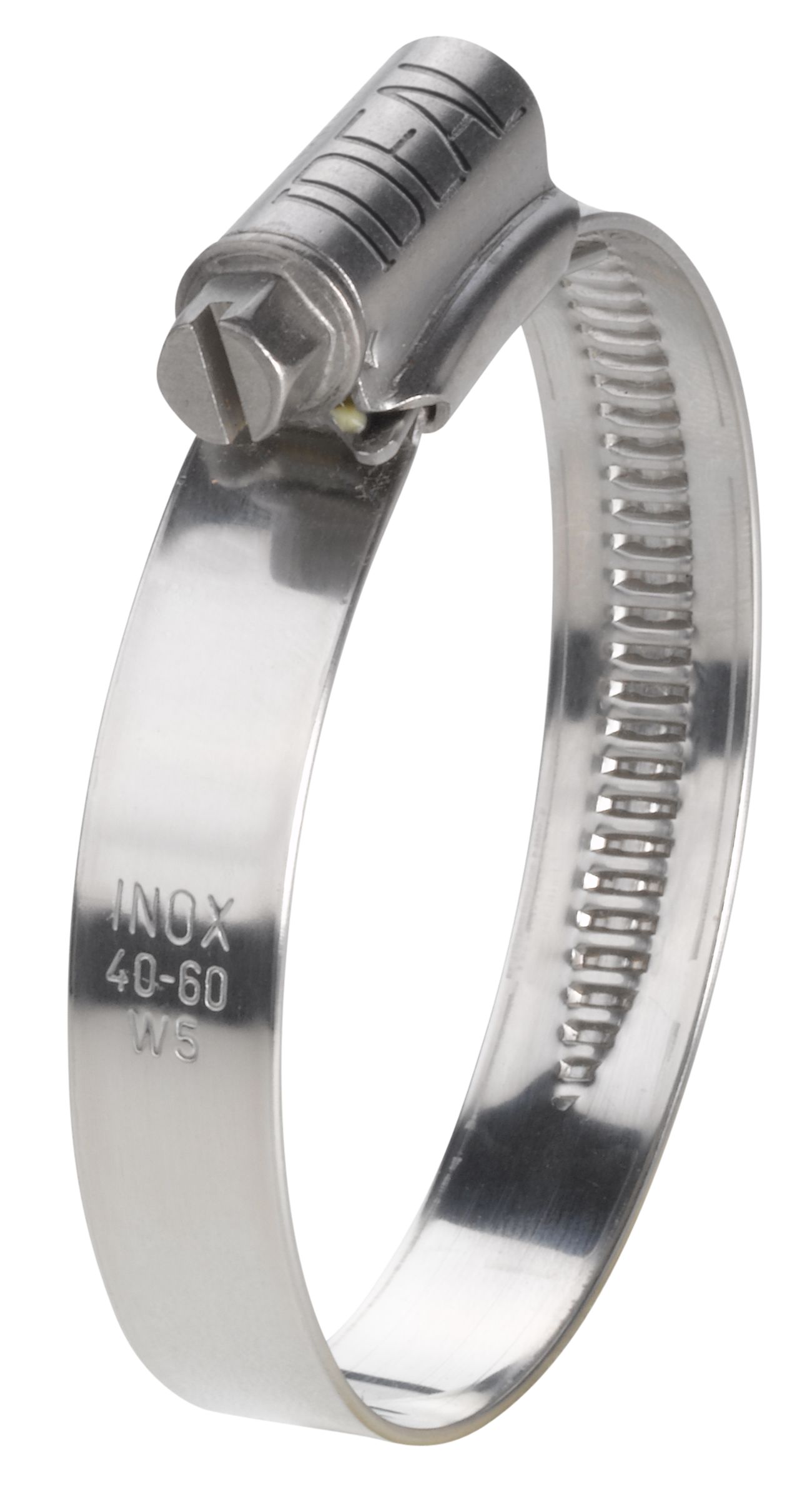

 IDEAL-Hose Clamps DIN 3017 |

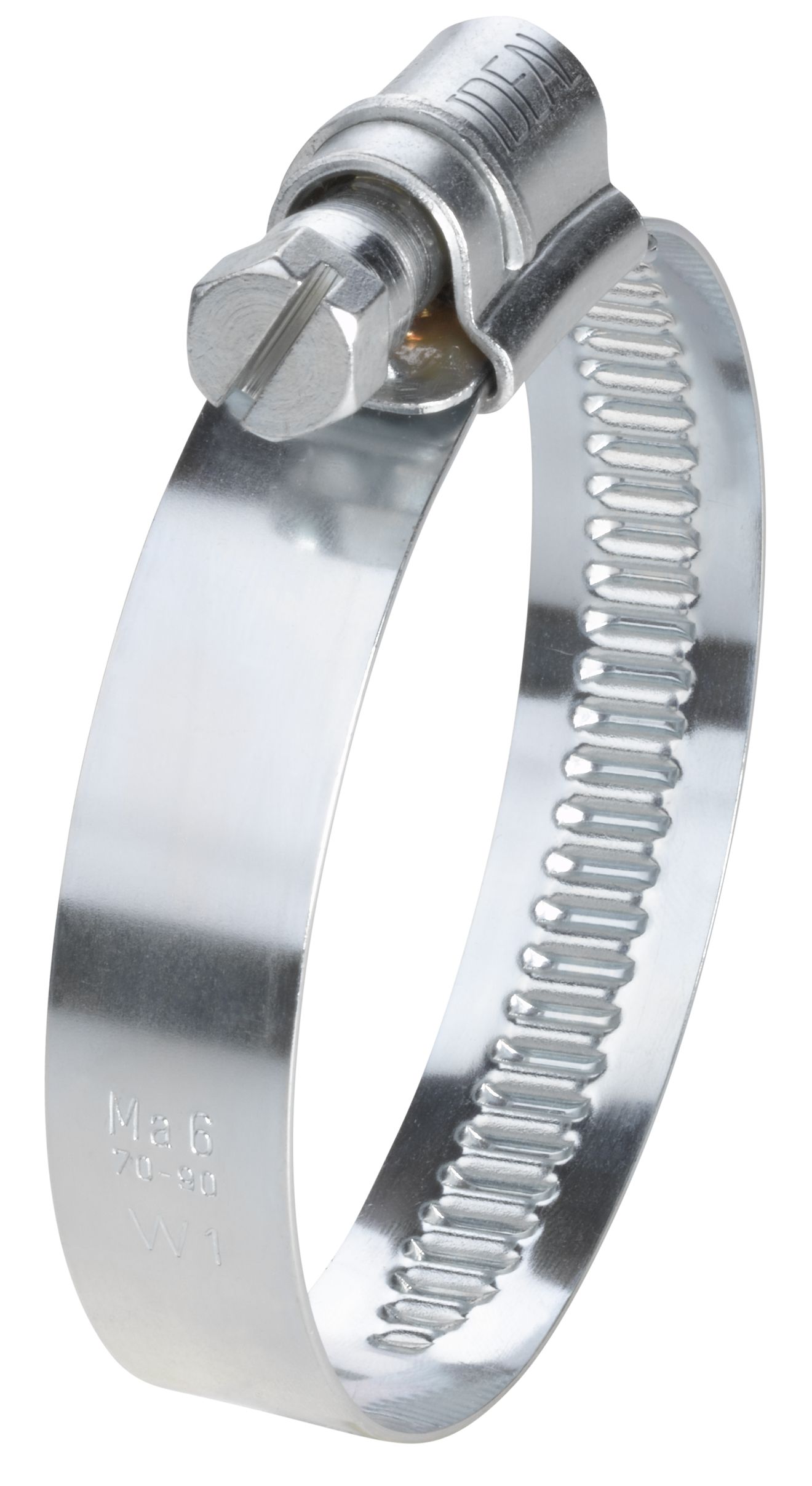

IDEAL-MAXI-Hose Clamps |
|
Please Contact us to receive a non-binding offer. |
|
